1. Sensitive Infrared edge guiding sensor accuracy 0.05mm, can detect clear materials.
2. Suitable for paper, metal, nonwoven ,cloth, clear and opaque film, sound-permeable materials…etc, and special inner edge guiding.
3. Servo Electrical Actuator, thrust 350kgf, load 3.5 tons(COF=0.1), max line speed 350m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. CE certified, Made in Taiwan. Internal edge guiding system has contactless semiconductor control that provides reliability and durability.

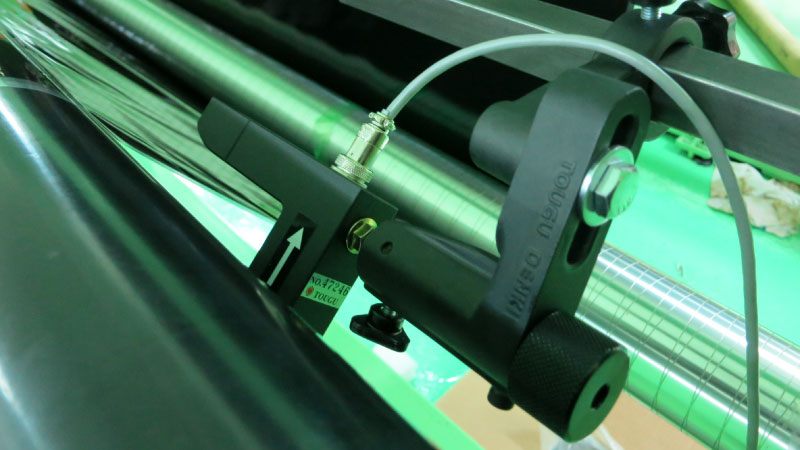

Infrared Edge Guiding Sensor
Edge Guiding Controller

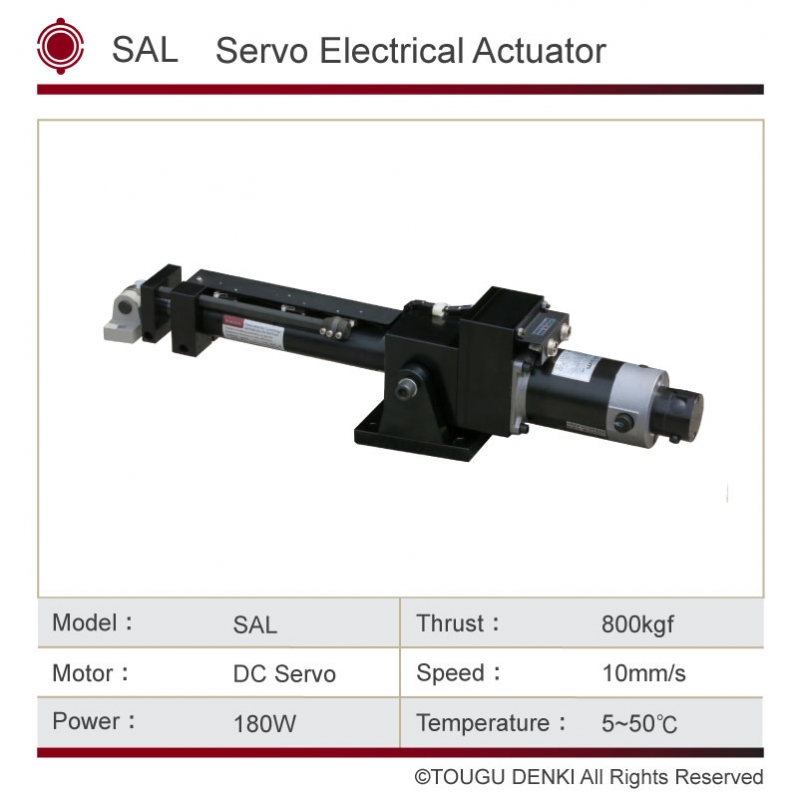

Servo Electrical Actuator
| Model | EPC-57S2 | EPC-57S2R | |
| Controller | Desktop / Wall-mounted | Remote | |
| Function | Auto / Man / Centering | ||
| Sensor | DS Infrared Sensor | ||
| Detect | Edge / Inner Edge | ||
| Accuracy | 0.05mm | ||
| Actuator | SA Servo Electrical | SAL Servo Electrical | |
| Speed | 350m/min | 100m/min | |
| Load (COF=0.1) | 3500KG | 8000KG | |
| Stroke | 70 / 140 / 280 mm | ||
| Power | 1Φ AC 220V | ||
| Temperature | 60℃ | ||
