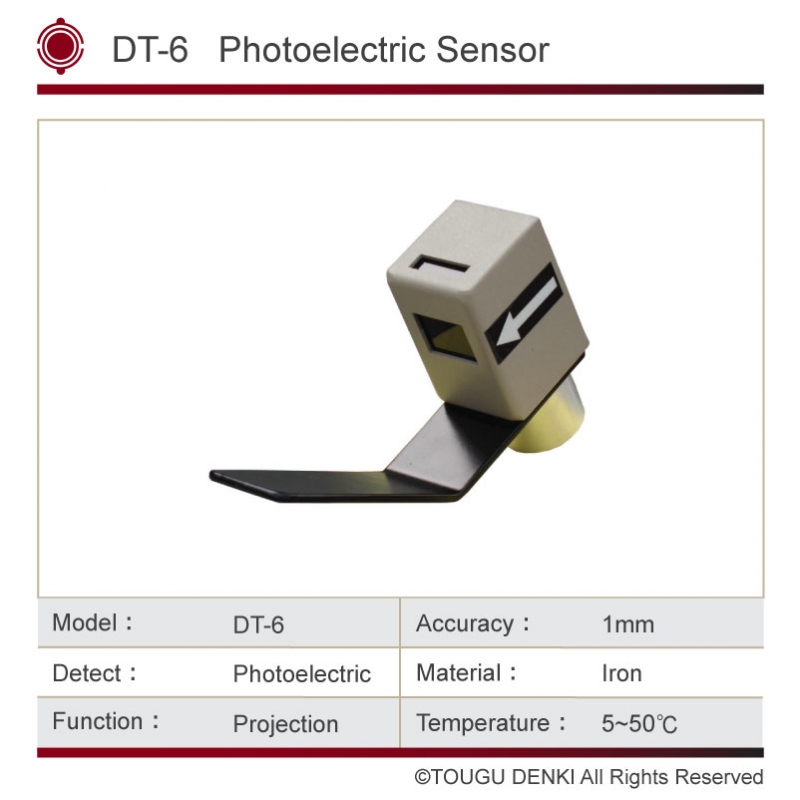

 Photoelectric Sensor DT-6
|
|---|

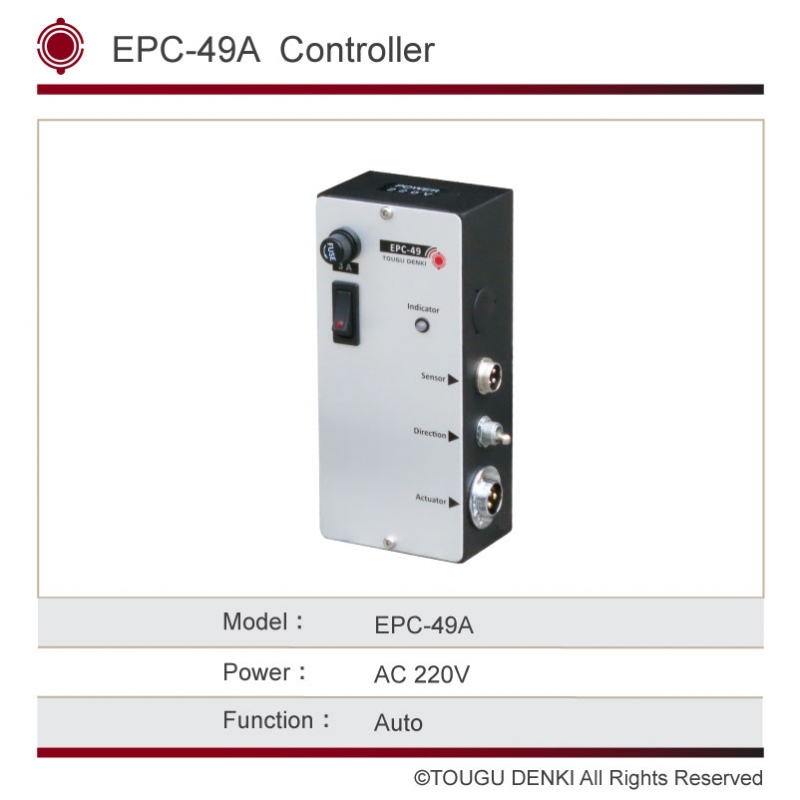

 Auto EPC-49A

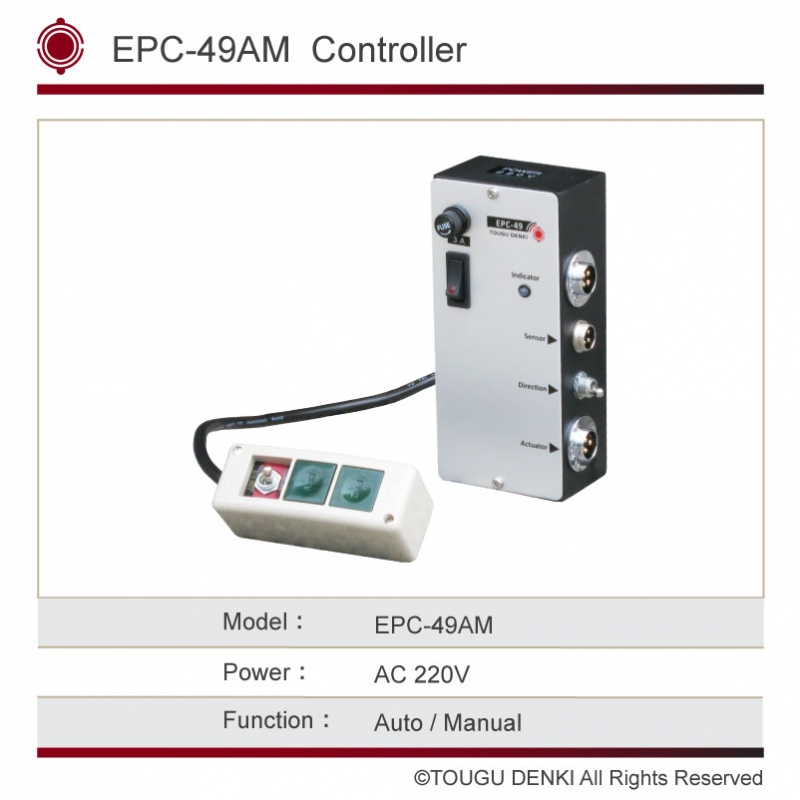

 Auto / Man EPC-49AM
|
|---|

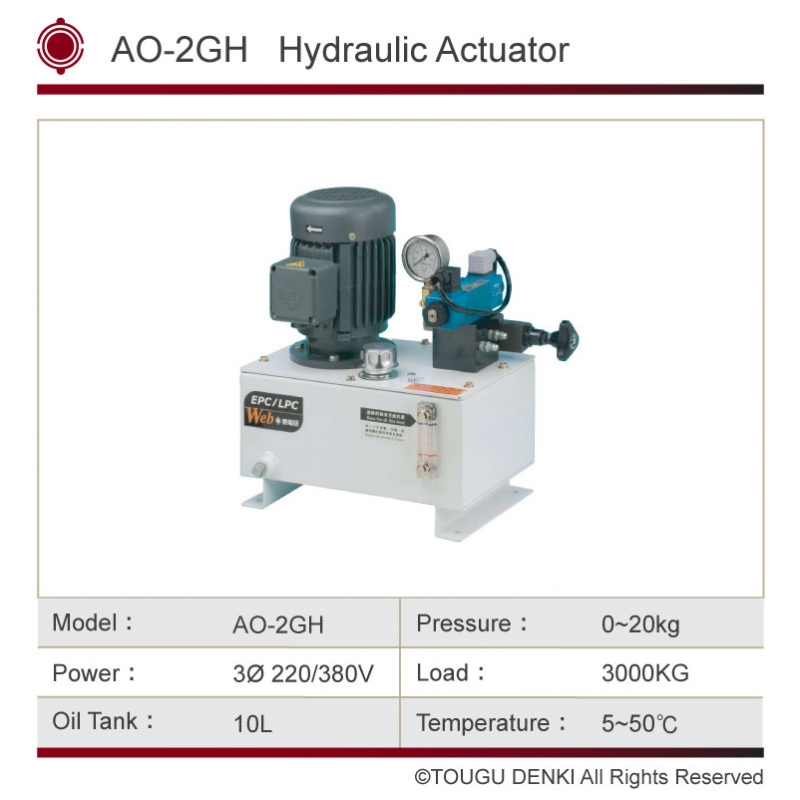

 Hydraulic Actuator AO-2GH
|
|---|
1. Photoelectric edge guide sensor detects by projection, easy to use without setting, accuracy 1mm.
2. Detects any material : clear and opaque materials, reflective steel, meshes, nonwoven, clothes,…etc.
3. Hydraulic Actuator is consistent quality, high thrust for load 3 tons, low noise, no oil leakage.
4. Adjustable trace speed for the requirements.
5. CE certified, Made in Taiwan. Internal web aligner system has contactless semiconductor control that provides reliability and durability.
Photoelectric Edge Guide Sensor
Hydraulic Actuator and Controller
| Model | EPC-49A | EPC-49AM | |
| Controller | Fixed on the Hydraulic System | ||
| Function | Auto | Auto / Man |
|
| Sensor | DT Photoelectric Sensor | ||
| Detect | Edge | ||
| Accuracy | 1mm | ||
| Actuator | AO-2GH Hydraulic | ||
| Cylinder | Φ40~80, stroke 50~500mm, option | ||
| Speed | 200m/min | ||
| Load (COF=0.1) | 3000KG | ||
| Power | Controller 1Φ AC 220V | ||
| Hydraulic System 3Φ AC 220V / 380V | |||
| Temperature | 60℃ | ||
※ Special load or power requirements can be customized
