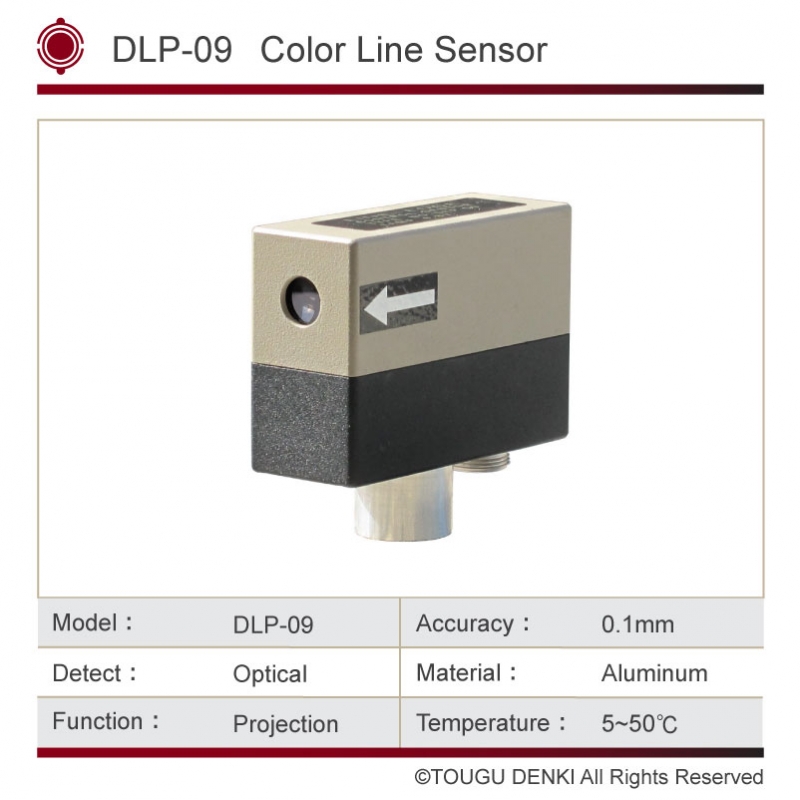

 Color Line Sensor DLP-09
|
|---|
 Controller LPC-68
|
|---|
 Electrical Actuator AD-90
|
|---|
1. Sensitive Color Line Sensor detects by projection, accuracy 0.1mm.
2. Suitable for printing line, broken line, edge and color difference guiding. Detects printing line of widths from 0.5mm to 5 mm.
3. Electrical Actuator, thrust 80kgf, load 800kg (COF=0.1), max line speed 150m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. Made in Taiwan. Internal line guiding system has contactless semiconductor control that provides reliability and durability.
| Model | LPC-68 | ||
| Controller | Desktop / Wall-mounted | ||
| Function | Auto / Man / Centering | ||
| Sensor | DLP Color Line Sensor | ||
| Detect | Line / Broken Line / Edge / Color Difference | ||
| Accuracy | 0.1mm | ||
| Actuator | AD-90 Electrical | ||
| Speed | 150m/min | ||
| Load (COF=0.1) | 800KG | ||
| Stroke | 70 / 140 / 280 mm | ||
| Power | 1Φ AC 220V | ||
| Temperature | 60℃ | ||
