1. Sensitive Infrared edge guiding sensor accuracy 0.05mm, can detect clear materials.
2. Suitable for paper, metal, nonwoven ,cloth, clear and opaque film, sound-permeable materials…etc, and special inner edge guiding.
3. Brushless Electrical Actuator, thrust 250kgf, load 2.5 tons(COF=0.1), max line speed 250m/min.
4. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
5. CE certified, Made in Taiwan. Internal edge guiding system has contactless semiconductor control that provides reliability and durability.
Infrared Edge Guiding Sensor
Edge Guiding Controller

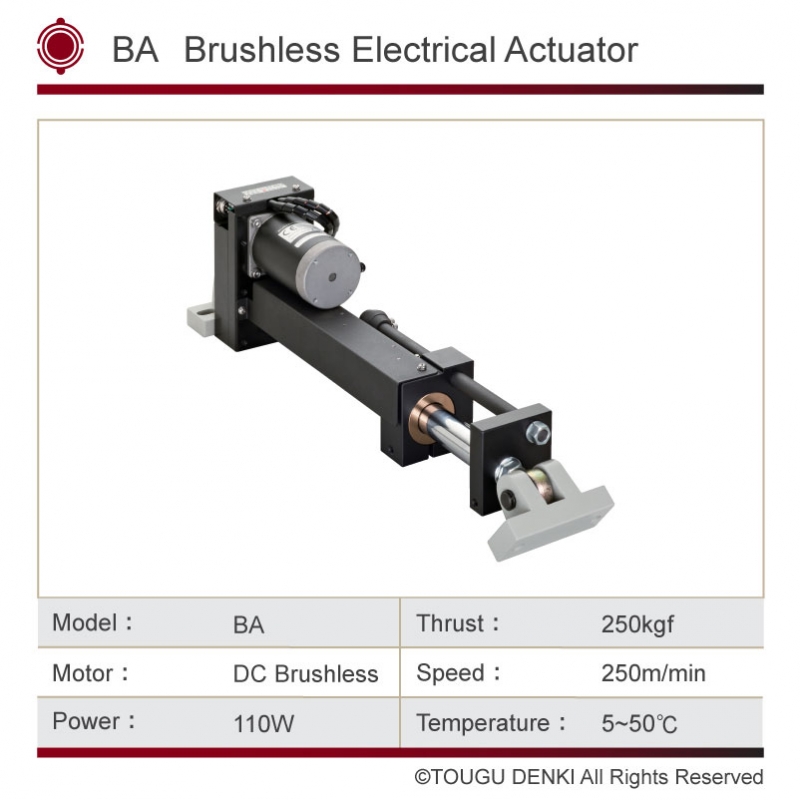

Brushless Electrical Actuator
| Model | EPC-83F | EPC-83B | EPC-83R |
| Controller | Desktop | Insertion | Remote |
| Function | Auto / Man / Centering | ||
| Sensor | DS Infrared Sensor | ||

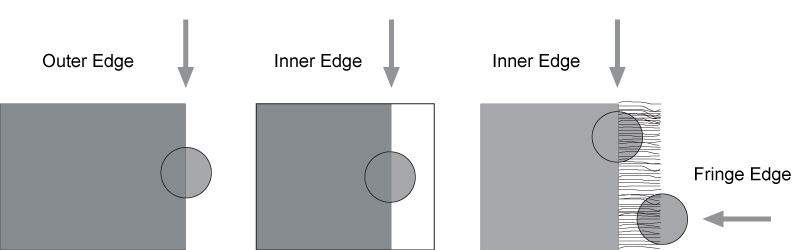

| Detect | Edge / Inner Edge | ||
| Accuracy | 0.05mm | ||
| Actuator | BA Brushless Electrical | ||
| Speed | 250m/min | ||
| Load (COF=0.1) | 2500KG | ||
| Stroke | 70 / 140 / 280 mm | ||
| Power | 1Φ AC 220V | ||
| Temperature | 60℃ | ||
