1. Heavy load maximum 60 tons, wide range of applications.
2. High operating thrust, fast response.
3. Low working pressure for safety (30~50kgf) and low noise.
4. Compact size, construction easy to maintain.
5. Automatic trace speed adjustment (analogue) according to the deviations for superior stability.
6. Ultrasonic, Infrared and Photoelectric web guide sensor subject to the requirements.
7. Made in Taiwan. Internal web guide system has contactless semiconductor control that provides reliability and durability.

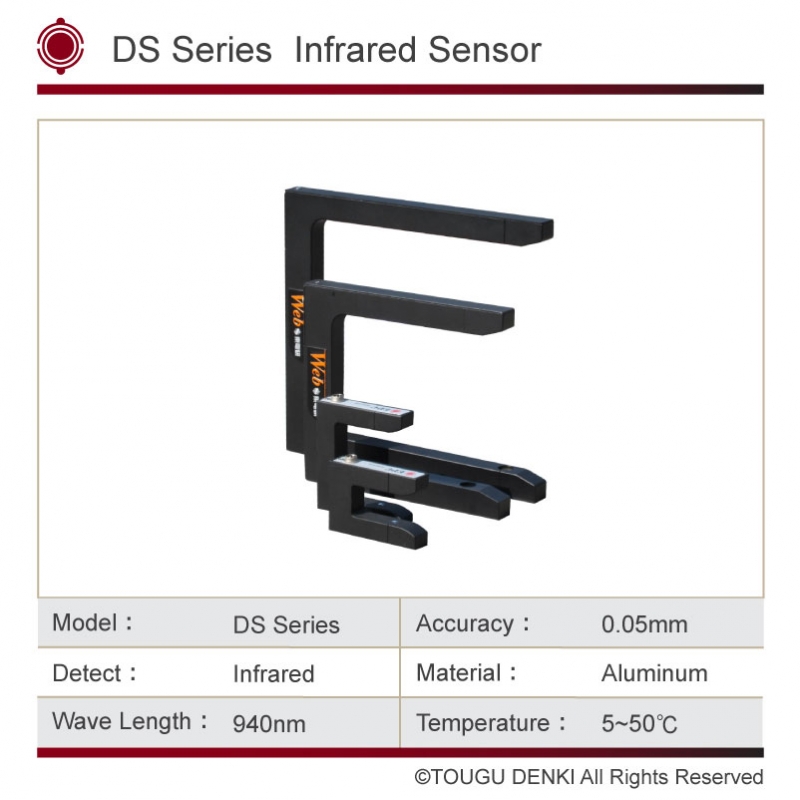

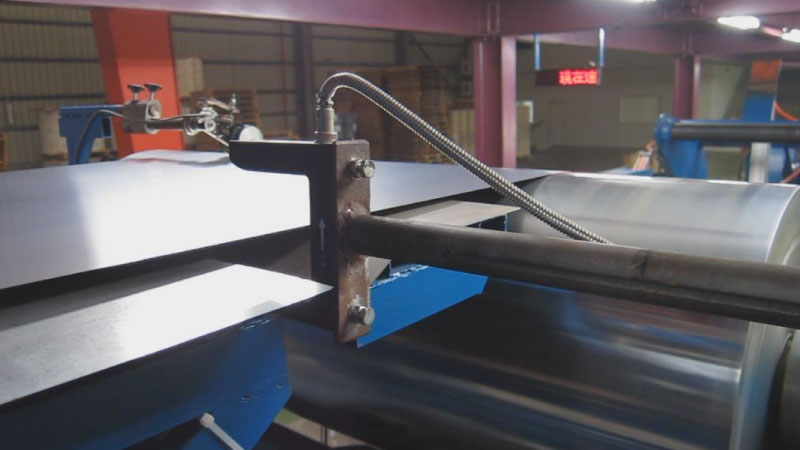

High Accuracy Web Guide Sensor
Controller
Heavy Duty Hydraulic Actuator
| Model | EPC-57HP | EPC-57HPU | |
| Controller | Desktop / Wall-mounted | ||
| Function | Auto / Man | ||
| Sensor | DS Infrared | DU Ultrasonic | |
| Detect | Edge | ||
| Accuracy | 0.1mm | ||
| Actuator | AO-P12 | AO-P22 | AO-P33 |
| Cylinder | Φ63~300, stroke 100~400mm, option | ||
| Horse Power | 1HP | 2HP | 3HP |
| Load (COF=0.1) | 10T | 20T | 50T |
| Power | Controller 1Φ AC 220V | ||
| Hydraulic System 3Φ AC 220V / 380V | |||
| Temperature | 60℃ | ||
※ Special power requirements can be customized
| Model | CPC-57HP | CPC-68HP | |
| Controller | Desktop / Wall-mounted | ||
| Function | Auto / Man | ||
| Sensor | DS-1800 Infrared | DCP Photoelectric | |
| Detect | Center / Left Edge / Right Edge | Center | |
| Accuracy | 1mm | 1~20mm | |
| Actuator | AO-P12 | AO-P22 | AO-P33 |
| Cylinder | Φ63~300, stroke 100~400mm, option | ||
| Horse Power | 1HP | 2HP | 3HP |
| Load (COF=0.1) | 10T | 20T | 50T |
| Power | Controller 1Φ AC 220V | ||
| Hydraulic System 3Φ AC 220V / 380V | |||
| Temperature | 60℃ | ||
※ Special power requirements can be customized
