 Photoelectric Sensor DT-6
|
|---|
-EN-01.jpg) Electrical EPC-85FP(SPC)
-EN-01.jpg) Hydraulic EPC-52(SPC)
|
|---|
 Electrical Actuator AD-24

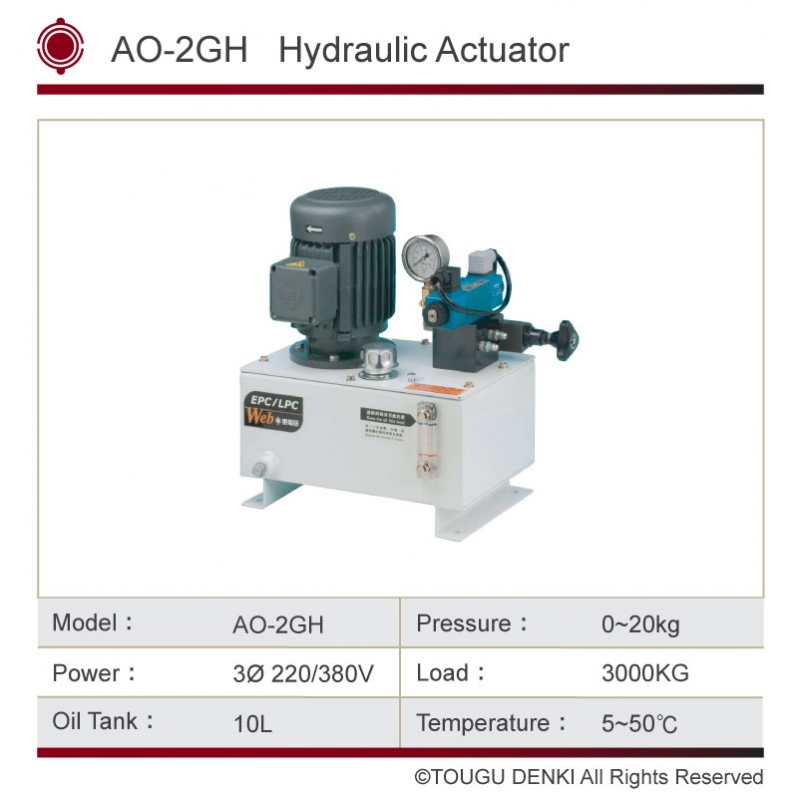

 Hydraulic Actuator AO-2GH
|
|---|
1. Special web guiding system for SPC (Snaking Position Control) and EPC (Edge Position Control) double function, for solving the problem of uneven thickness of materials, such as cloth, textiles, lamination, extrusion lamination, etc.
2. SPC function is built-in the system, it is no need any SPC auxiliary device to install.
3. SPC range and speed can be set optionally.
4. Photoelectric sensor detects by projection, easy to use without setting.
4. Electrical and Hydraulic actuator subject to the speed and load requirements.
5. Made in Taiwan. Internal web guide system has contactless semiconductor control that provides reliability and durability.
7. Ultrasonic and Infrared sensor series can also be used.
| Model | EPC-85FP(SPC) | EPC-52(SPC) | |
| Controller | Wall-mounted | ||
| Function | Auto / Man / Centering / SPC | Auto / Man / SPC | |
| Sensor | DT Photoelectric Sensor | ||
| Detect | Edge | ||
| Accuracy | 1mm | ||
| Actuator | AD-24 Electrical | AO-2GH Hydraulic | |
| Speed | 200m/min | ||
| Load (COF=0.1) | 2000KG | 3000KG | |
| Stroke | 70 / 140 / 280 mm | Cylinder Option | |
| Power | Controller 1Φ AC 220V | ||
| Hydraulic System 3Φ AC 220V / 380V | |||
| Temperature | 60℃ | ||
※ Special load or power requirements can be customized.
※ Ultrasonic and Infrared sensor series can also be used.
