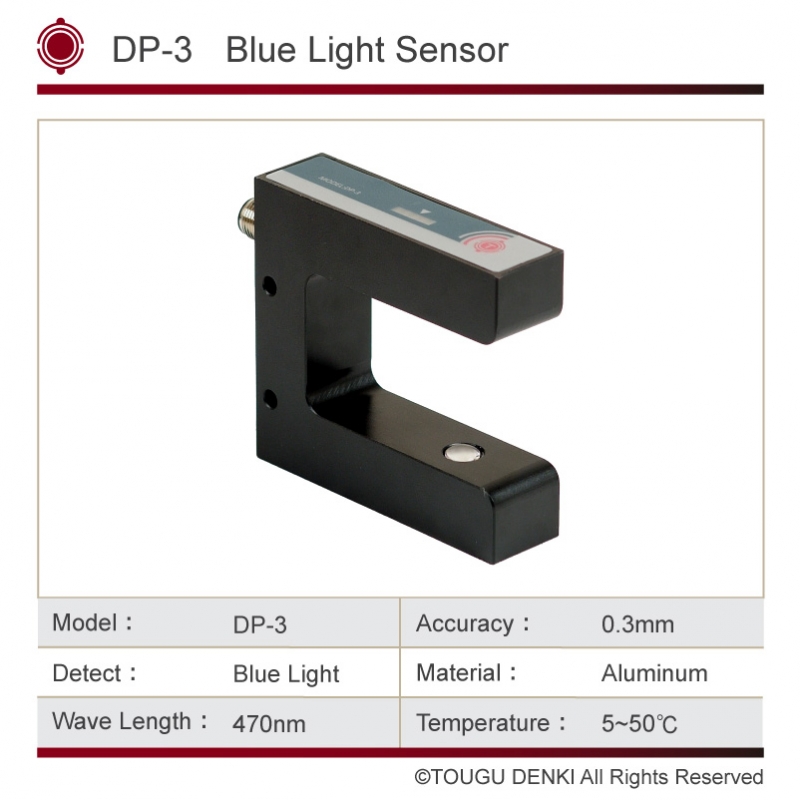

 Blue Light Sensor DP-3
|
|---|
 Auto EPC-66A
 Auto / Man EPC-66AM
|
|---|
 Hydraulic Actuator AO-2GH
|
|---|
1. Blue Light edge guiding sensor, which is suitable for paper, metal, nonwoven ,cloth, clear and opaque film, sound-permeable materials…etc, and special inner edge guiding.
2. Unique blue light source, the system is not affected by the ambient light.
3. Hydraulic Actuator is consistent quality, high thrust for load 3 tons, low noise, no oil leakage.
4. Adjustable trace speed for the requirements.
5. Made in Taiwan. Internal web guiding system has contactless semiconductor control that provides reliability and durability.
| Model | EPC-66A | EPC-66AM | |
| Controller | Fixed on the Hydraulic System | ||
| Function | Auto | Auto / Man | |
| Sensor | DP-3 Blue Light Sensor | ||
| Detect | Edge | ||
| Accuracy | 0.3mm | ||
| Actuator | AO-2GH Hydraulic | ||
| Cylinder | Φ40~80, stroke 50~500mm, option | ||
| Speed | 200m/min | ||
| Load (COF=0.1) | 3000KG | ||
| Power | Controller 1Φ AC 220V | ||
| Hydraulic System 3Φ AC 220V / 380V | |||
| Temperature | 60℃ | ||
※ Special load or power requirements can be customized
